TGT-5K-1P1M

Power Rating: 5 KW

Warranty: 10 Years

Charger: MPPT

Consumer Benefits

Constant Power Supply
Use Of Renewable Resource
Power Monitoring
Power Maximization

Features

  • Max Efficiency98.5%

  • Low Startup Dc Voltage

  • Max DcOverloading 30%

  • Wide AcVoltage Range

  • Type-2 Spd EnabledAc and Dc Side

  • Eastman Solar App For Remote Monitoring 24*7

  • Built In ZeroExport Function

  • IP 65Enclosure

Technical Specification

Model No.TGT-5K-1P1M
DC Side/Input Parameters
Max. DC Power [W]7000
Max. DC Voltage [Vdc]550
Min. System Start [Vdc]75
MPPT Voltage Range [Vdc]100~450
Max. Input MPPT Current [Adc]22
Max. Input Short-Circuit Current per MPPT [Adc]28
Number of MPP Tracker1
Max. Number of String (Parallel)1
AC Side/Output Parameters
Nominal Output Power [W]5000
Maximum Active Power [W]5500
Maximum Apparent Output Power [VA]5500
Nominal Output Voltage/Range [Vac]230/180-270
AC Grid Frequency/Range [Hz]50/60 Hz / ±4.5 auto selection
Maximum Output Current [Aac]23
AC Connection (with PE)1P+N+PE (Single Phase)
Current Distortion (THDi) [%]<1.5%
Power Factor-0.8 to +0.8
Efficiency
Maximum Conversion Efficiency [%]97.5
European Efficiency [%]97.2
MPPT Efficiency [%]99.99
Protection
DC Reverse-Polarity ProtectionYes
Short Circuit ProtectionYes
Ground Fault/Residual Current MonitoringYes
Grid MonitoringYes
DC/AC Side Varistor (Thermal Protection)Yes
General Parameters
Dimension (L/W/H) [mm]370/290/103
Weight [Kg]12
Night Mode SupportOptional
Isolation TypeTransformerless
Ingress ProtectionIP 65
Operating Temperature [°C]-25 to +60
Heat DissipationConvection
Noise Level [dB]<25
Altitude [m]<2000 without power derating
Storage Temperature [°C]-30 to +80
Real Time Clock ModuleYes
LCD DisplayGraphic and Digital Segment
Communication InterfaceStandard Wi-Fi
Warranty10 Years, 1 Year on Accessories (Logger, ZED etc.)
Certificates and Approvals
IS 16221 (Part-2) / IEC 62109 - 2 ; IS 16169 / IEC 62116

Applications

  • Home

  • Office

  • Industrial Units

  • Hospitals

  • Schools

  • Petrol Pump

Blogs

Solar Inverters
Harnessing Solar Power - A Sustainable Energy Solution for Your Home

Solar power has changed the game in a society battling with the pressing need for sustainable energy options. Solar energy harnesses the sun's abundant energy.

Solar Inverters
What Is A Solar Power Conditioning Unit? How Does It Work?

A power conditioning unit is a device used to improve and maintain the quality of power delivered to any device or electrical load equipment.

Solar Inverters
All You Need to Know About Grid Tie Inverter

Grid Tie Inverter is the vital link between your solar panels and the electrical grid.Its primary role is to transform your solar panels' direct current (DC) into alternating current (AC), making i

FAQs

What is a Solar Inverter?

A solar inverter converts the DC electricity generated by your solar panels into AC electricity, making it usable for your home or business. We have a complete range of Solar Inverters for your every need. Our portfolio includes Off Grid Solar Inverters (PWM and MPPT based) and Grid Tie Solar Inverters with the best performance and reliability in the industry.

How many solar panels should I connect with my solar inverter?

Connect enough solar panels to match the capacity of your inverter, ensuring optimal performance and efficient energy production for your needs. Use our Off Grid Solar Calculator or Grid Tie Solar Calculator for our recommendations as per your requirement.

How much electricity bill will I save when I use an Eastman solar inverter?

Using our Eastman solar inverter can save you up to 70% on your electricity bills by significantly reducing your reliance on grid electricity. Know your exact savings by using our Grid Tie Solar Calculator.

What does a solar inverter do?

A solar inverter converts DC electricity from your solar panels into AC electricity for your household appliances, enabling you to use solar power. We have a complete range of Solar Inverters for your every need. Our portfolio includes Off Grid Solar Inverters (PWM and MPPT based) and Grid Tie Solar Inverters with the best performance and reliability in the industry.

What are the types of solar inverters?

Our range of Solar Inverters include Off Grid Solar Inverters and Grid Tie Solar Inverters, each suited for different solar power system setups. Explore our complete range of Solar Inverters now!

How to choose a solar inverter?

Choose a solar inverter based on your energy needs, system size, and compatibility with your solar panels to ensure efficient energy conversion. Use our Off Grid Solar Calculator or Grid Tie Solar Calculator for our recommendations as per your requirement.

How to calculate solar inverter size?

To calculate your solar inverter size, match it to the total wattage of your solar panels, ensuring the inverter capacity meets or exceeds this value. Use our Off Grid Solar Calculator or Grid Tie Solar Calculator for our recommendations as per your requirement.

What is PV in a solar inverter?

PV stands for photovoltaic, referring to the technology that converts sunlight into electricity through solar panels in your solar power system.

Interested in buying our products?

Fill the enquiry form or call us on:

78728 78728

Enquiry Form

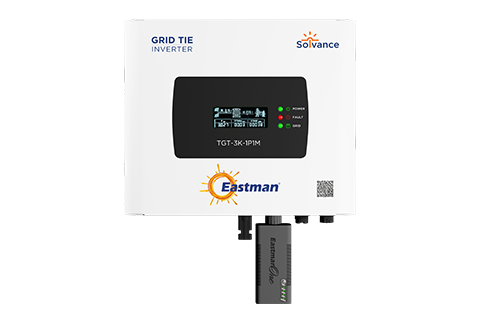

TGT-3K-1P1M

Power Rating: 3 KW

Warranty: 10 Years

Charger: MPPT

Consumer Benefits

Constant Power Supply
Use Of Renewable Resource
Power Monitoring
Power Maximization

Features

  • Max Efficiency98.5%

  • Low Startup Dc Voltage

  • Max DcOverloading 30%

  • Wide AcVoltage Range

  • Type-2 Spd EnabledAc and Dc Side

  • Eastman Solar App For Remote Monitoring 24*7

  • Built In ZeroExport Function

  • IP 65Enclosure

Technical Specification

Model No.TGT-3K-1P1M
DC Side/Input Parameters
Max. DC Power [W]4500
Max. DC Voltage [Vdc]550
Min. System Start [Vdc]75
MPPT Voltage Range [Vdc]100~450
Max. Input MPPT Current [Adc]18
Max. Input Short-Circuit Current per MPPT [Adc]23
Number of MPP Tracker1
Max. Number of String (Parallel)1
AC Side/Output Parameters
Nominal Output Power [W]3000
Maximum Active Power [W]3300
Maximum Apparent Output Power [VA]3300
Nominal Output Voltage/Range [Vac]230/180-270
AC Grid Frequency/Range [Hz]50/60 Hz / ±4.5 auto selection
Maximum Output Current [Aac]16
AC Connection (with PE)1P+N+PE (Single Phase)
Current Distortion (THDi) [%]<1.5%
Power Factor-0.8 to +0.8
Efficiency
Maximum Conversion Efficiency [%]97.5
European Efficiency [%]97.2
MPPT Efficiency [%]99.99
Protection
DC Reverse-Polarity ProtectionYes
Short Circuit ProtectionYes
Ground Fault/Residual Current MonitoringYes
Grid MonitoringYes
DC/AC Side Varistor (Thermal Protection)Yes
General Parameters
Dimension (L/W/H) [mm]300/295/105
Weight [Kg]8
Night Mode SupportOptional
Isolation TypeTransformerless
Ingress ProtectionIP 65
Operating Temperature [°C]-25 to +60
Heat DissipationConvection
Noise Level [dB]<25
Altitude [m]<2000 without power derating
Storage Temperature [°C]-30 to +80
Real Time Clock ModuleYes
LCD DisplayGraphic and Digital Segment
Communication InterfaceStandard Wi-Fi
Warranty10 Years, 1 Year on Accessories (Logger, ZED etc.)
Certificates and Approvals
IS 16221 (Part-2) / IEC 62109 - 2 ; IS 16169 / IEC 62116

Applications

  • Home

  • Office

  • Industrial Units

  • Hospitals

  • Schools

  • Petrol Pump

Blogs

Solar Inverters
Harnessing Solar Power - A Sustainable Energy Solution for Your Home

Solar power has changed the game in a society battling with the pressing need for sustainable energy options. Solar energy harnesses the sun's abundant energy.

Solar Inverters
What Is A Solar Power Conditioning Unit? How Does It Work?

A power conditioning unit is a device used to improve and maintain the quality of power delivered to any device or electrical load equipment.

Solar Inverters
All You Need to Know About Grid Tie Inverter

Grid Tie Inverter is the vital link between your solar panels and the electrical grid.Its primary role is to transform your solar panels' direct current (DC) into alternating current (AC), making i

FAQs

What is a Solar Inverter?

A solar inverter converts the DC electricity generated by your solar panels into AC electricity, making it usable for your home or business. We have a complete range of Solar Inverters for your every need. Our portfolio includes Off Grid Solar Inverters (PWM and MPPT based) and Grid Tie Solar Inverters with the best performance and reliability in the industry.

How many solar panels should I connect with my solar inverter?

Connect enough solar panels to match the capacity of your inverter, ensuring optimal performance and efficient energy production for your needs. Use our Off Grid Solar Calculator or Grid Tie Solar Calculator for our recommendations as per your requirement.

How much electricity bill will I save when I use an Eastman solar inverter?

Using our Eastman solar inverter can save you up to 70% on your electricity bills by significantly reducing your reliance on grid electricity. Know your exact savings by using our Grid Tie Solar Calculator.

What does a solar inverter do?

A solar inverter converts DC electricity from your solar panels into AC electricity for your household appliances, enabling you to use solar power. We have a complete range of Solar Inverters for your every need. Our portfolio includes Off Grid Solar Inverters (PWM and MPPT based) and Grid Tie Solar Inverters with the best performance and reliability in the industry.

What are the types of solar inverters?

Our range of Solar Inverters include Off Grid Solar Inverters and Grid Tie Solar Inverters, each suited for different solar power system setups. Explore our complete range of Solar Inverters now!

How to choose a solar inverter?

Choose a solar inverter based on your energy needs, system size, and compatibility with your solar panels to ensure efficient energy conversion. Use our Off Grid Solar Calculator or Grid Tie Solar Calculator for our recommendations as per your requirement.

How to calculate solar inverter size?

To calculate your solar inverter size, match it to the total wattage of your solar panels, ensuring the inverter capacity meets or exceeds this value. Use our Off Grid Solar Calculator or Grid Tie Solar Calculator for our recommendations as per your requirement.

What is PV in a solar inverter?

PV stands for photovoltaic, referring to the technology that converts sunlight into electricity through solar panels in your solar power system.

Interested in buying our products?

Fill the enquiry form or call us on:

78728 78728

Enquiry Form

On-Grid vs Off-Grid Solar Systems: Which One Is Right for You?

Submitted by admin on

Solar energy has emerged as one of the most sustainable and cost-effective ways to power homes, businesses, and communities. However, when considering solar power for your property, you'll likely come across two main types of solar systems: on-grid and off-grid. Both systems have their advantages and are suitable for different needs, depending on your location, energy goals, and budget. Let’s explore the key differences between these two types of solar systems to help you make an informed decision.

What is Net Metering in a Grid Tie Solar System?

Submitted by admin on

Ever imagined your electricity meter running backwards? Or better yet, the idea of earning from your electricity bill? That’s exactly what net metering makes possible.

If you have a grid-connected solar system at home, you’re not just using the sun to power your appliances, you’re also getting rewarded for the extra energy your system generates.

ES20KWS-GT-3

Power Rating: 20 KW

Warranty: 120 Months

Charger: MPPT

Consumer Benefits

Constant Power Supply
Use Of Renewable Resource
Power Monitoring
Power Maximization

Features

  • Max Efficiency98.5%

  • Low Startup Dc Voltage

  • Max DcOverloading 30%

  • Wide AcVoltage Range

  • Type-2 Spd EnabledAc and Dc Side

  • Eastman Solar App For Remote Monitoring 24*7

  • Built In ZeroExport Function

  • IP 65Enclosure

Technical Specification

S.No.ParametersES20KWT-GT
1Warranty10 years
2Max. DC Input Power (kW)30KW
3Max. DC Input Voltage (V)1100V
4Start-up DC Input Voltage (V)150V
5MPPT Operating Range (V)150V-1000V
6Max. DC Input Current (A)32X2
7Max. Short Circuit Current (A)48X2
8No. of MPP Trackers2
9Rated Output Power (kW)20KW
10Rated Output Power (VA)NA
11Nominal Output Voltage / Range (V)3P+N+PE/+PE 230/400V
12Rated Grid Frequency (Hz)50/60Hz
13Operating PhaseThree Phase
14Max. AC Output Current (A)32A/PH
15Surge protectionDC Type II/AC Type II
16AC ConnectionThree Phase
17InterfaceRS485/RS232/WiFi/LAN
18Dimension (L*W*H)330x457x185

Applications

  • Home

  • Office

  • Industrial Units

  • Hospitals

  • Schools

  • Petrol Pump

Blogs

Solar Inverters
Harnessing Solar Power - A Sustainable Energy Solution for Your Home

Solar power has changed the game in a society battling with the pressing need for sustainable energy options. Solar energy harnesses the sun's abundant energy.

Solar Inverters
What Is A Solar Power Conditioning Unit? How Does It Work?

A power conditioning unit is a device used to improve and maintain the quality of power delivered to any device or electrical load equipment.

Solar Inverters
All You Need to Know About Grid Tie Inverter

Grid Tie Inverter is the vital link between your solar panels and the electrical grid.Its primary role is to transform your solar panels' direct current (DC) into alternating current (AC), making i

FAQs

What is a Solar Inverter?

A solar inverter converts the DC electricity generated by your solar panels into AC electricity, making it usable for your home or business. We have a complete range of Solar Inverters for your every need. Our portfolio includes Off Grid Solar Inverters (PWM and MPPT based) and Grid Tie Solar Inverters with the best performance and reliability in the industry.

How many solar panels should I connect with my solar inverter?

Connect enough solar panels to match the capacity of your inverter, ensuring optimal performance and efficient energy production for your needs. Use our Off Grid Solar Calculator or Grid Tie Solar Calculator for our recommendations as per your requirement.

How much electricity bill will I save when I use an Eastman solar inverter?

Using our Eastman solar inverter can save you up to 70% on your electricity bills by significantly reducing your reliance on grid electricity. Know your exact savings by using our Grid Tie Solar Calculator.

What does a solar inverter do?

A solar inverter converts DC electricity from your solar panels into AC electricity for your household appliances, enabling you to use solar power. We have a complete range of Solar Inverters for your every need. Our portfolio includes Off Grid Solar Inverters (PWM and MPPT based) and Grid Tie Solar Inverters with the best performance and reliability in the industry.

What are the types of solar inverters?

Our range of Solar Inverters include Off Grid Solar Inverters and Grid Tie Solar Inverters, each suited for different solar power system setups. Explore our complete range of Solar Inverters now!

How to choose a solar inverter?

Choose a solar inverter based on your energy needs, system size, and compatibility with your solar panels to ensure efficient energy conversion. Use our Off Grid Solar Calculator or Grid Tie Solar Calculator for our recommendations as per your requirement.

How to calculate solar inverter size?

To calculate your solar inverter size, match it to the total wattage of your solar panels, ensuring the inverter capacity meets or exceeds this value. Use our Off Grid Solar Calculator or Grid Tie Solar Calculator for our recommendations as per your requirement.

What is PV in a solar inverter?

PV stands for photovoltaic, referring to the technology that converts sunlight into electricity through solar panels in your solar power system.

Interested in buying our products?

Fill the enquiry form or call us on:

78728 78728

Enquiry Form

ES15KWT-GT

Power Rating: 15 KW

Warranty: 120 Months

Charger: MPPT

Consumer Benefits

Constant Power Supply
Use Of Renewable Resource
Power Monitoring
Power Maximization

Features

  • Max Efficiency98.5%

  • Low Startup Dc Voltage

  • Max DcOverloading 30%

  • Wide AcVoltage Range

  • Type-2 Spd EnabledAc and Dc Side

  • Eastman Solar App For Remote Monitoring 24*7

  • Built In ZeroExport Function

  • IP 65Enclosure

Technical Specification

S.No.ParametersES15KWT-GT
1Warranty10 years
2Max. DC Input Power (kW)22.5KW
3Max. DC Input Voltage (V)1100V
4Start-up DC Input Voltage (V)150V
5MPPT Operating Range (V)150-1000V
6Max. DC Input Current (A)20X32
7Max. Short Circuit Current (A)30+48
8No. of MPP Trackers2
9Rated Output Power (kW)15KW
10Rated Output Power (VA)NA
11Nominal Output Voltage / Range (V)3P+N+PE/+PE 230/400V
12Rated Grid Frequency (Hz)50/60Hz
13Operating PhaseThree Phase
14Max. AC Output Current (A)27A/PH
15Surge protectionDC Type II/AC Type II
16AC ConnectionThree Phase
17InterfaceRS485/RS232/WiFi/LAN
18Dimension (L*W*H)330x457x185

Applications

  • Home

  • Office

  • Industrial Units

  • Hospitals

  • Schools

  • Petrol Pump

Blogs

Solar Inverters
Harnessing Solar Power - A Sustainable Energy Solution for Your Home

Solar power has changed the game in a society battling with the pressing need for sustainable energy options. Solar energy harnesses the sun's abundant energy.

Solar Inverters
What Is A Solar Power Conditioning Unit? How Does It Work?

A power conditioning unit is a device used to improve and maintain the quality of power delivered to any device or electrical load equipment.

Solar Inverters
All You Need to Know About Grid Tie Inverter

Grid Tie Inverter is the vital link between your solar panels and the electrical grid.Its primary role is to transform your solar panels' direct current (DC) into alternating current (AC), making i

FAQs

What is a Solar Inverter?

A solar inverter converts the DC electricity generated by your solar panels into AC electricity, making it usable for your home or business. We have a complete range of Solar Inverters for your every need. Our portfolio includes Off Grid Solar Inverters (PWM and MPPT based) and Grid Tie Solar Inverters with the best performance and reliability in the industry.

How many solar panels should I connect with my solar inverter?

Connect enough solar panels to match the capacity of your inverter, ensuring optimal performance and efficient energy production for your needs. Use our Off Grid Solar Calculator or Grid Tie Solar Calculator for our recommendations as per your requirement.

How much electricity bill will I save when I use an Eastman solar inverter?

Using our Eastman solar inverter can save you up to 70% on your electricity bills by significantly reducing your reliance on grid electricity. Know your exact savings by using our Grid Tie Solar Calculator.

What does a solar inverter do?

A solar inverter converts DC electricity from your solar panels into AC electricity for your household appliances, enabling you to use solar power. We have a complete range of Solar Inverters for your every need. Our portfolio includes Off Grid Solar Inverters (PWM and MPPT based) and Grid Tie Solar Inverters with the best performance and reliability in the industry.

What are the types of solar inverters?

Our range of Solar Inverters include Off Grid Solar Inverters and Grid Tie Solar Inverters, each suited for different solar power system setups. Explore our complete range of Solar Inverters now!

How to choose a solar inverter?

Choose a solar inverter based on your energy needs, system size, and compatibility with your solar panels to ensure efficient energy conversion. Use our Off Grid Solar Calculator or Grid Tie Solar Calculator for our recommendations as per your requirement.

How to calculate solar inverter size?

To calculate your solar inverter size, match it to the total wattage of your solar panels, ensuring the inverter capacity meets or exceeds this value. Use our Off Grid Solar Calculator or Grid Tie Solar Calculator for our recommendations as per your requirement.

What is PV in a solar inverter?

PV stands for photovoltaic, referring to the technology that converts sunlight into electricity through solar panels in your solar power system.

Interested in buying our products?

Fill the enquiry form or call us on:

78728 78728

Enquiry Form

ES10KWS-GT-3

Power Rating: 10 KW

Warranty: 120 Months

Charger: MPPT

Consumer Benefits

Constant Power Supply
Use Of Renewable Resource
Power Monitoring
Power Maximization

Features

  • Max Efficiency98.5%

  • Low Startup Dc Voltage

  • Max DcOverloading 30%

  • Wide AcVoltage Range

  • Type-2 Spd EnabledAc and Dc Side

  • Eastman Solar App For Remote Monitoring 24*7

  • Built In ZeroExport Function

  • IP 65Enclosure

Technical Specification

S.No.ParametersES10KWT-GT
1Warranty10 years
2Max. DC Input Power (kW)15KW
3Max. DC Input Voltage (V)1100V
4Start-up DC Input Voltage (V)150V
5MPPT Operating Range (V)150-1000V
6Max. DC Input Current (A)15X2
7Max. Short Circuit Current (A)25X2
8No. of MPP Trackers2
9Rated Output Power (kW)10KW
10Rated Output Power (VA)NA
11Nominal Output Voltage / Range (V)3P+N+PE/+PE 230/400V
12Rated Grid Frequency (Hz)50/60Hz
13Operating PhaseThree Phase
14Max. AC Output Current (A)17A/PH
15Surge protectionINTEGRATED (TYPE III)
16AC ConnectionThree Phase
17InterfaceRS485/wifi /wire Ethernet/GPRS (Optional)
18Dimension (L*W*H)370X510X192

Applications

  • Home

  • Office

  • Industrial Units

  • Hospitals

  • Schools

  • Petrol Pump

Blogs

Solar Inverters
Harnessing Solar Power - A Sustainable Energy Solution for Your Home

Solar power has changed the game in a society battling with the pressing need for sustainable energy options. Solar energy harnesses the sun's abundant energy.

Solar Inverters
What Is A Solar Power Conditioning Unit? How Does It Work?

A power conditioning unit is a device used to improve and maintain the quality of power delivered to any device or electrical load equipment.

Solar Inverters
All You Need to Know About Grid Tie Inverter

Grid Tie Inverter is the vital link between your solar panels and the electrical grid.Its primary role is to transform your solar panels' direct current (DC) into alternating current (AC), making i

FAQs

What is a Solar Inverter?

A solar inverter converts the DC electricity generated by your solar panels into AC electricity, making it usable for your home or business. We have a complete range of Solar Inverters for your every need. Our portfolio includes Off Grid Solar Inverters (PWM and MPPT based) and Grid Tie Solar Inverters with the best performance and reliability in the industry.

How many solar panels should I connect with my solar inverter?

Connect enough solar panels to match the capacity of your inverter, ensuring optimal performance and efficient energy production for your needs. Use our Off Grid Solar Calculator or Grid Tie Solar Calculator for our recommendations as per your requirement.

How much electricity bill will I save when I use an Eastman solar inverter?

Using our Eastman solar inverter can save you up to 70% on your electricity bills by significantly reducing your reliance on grid electricity. Know your exact savings by using our Grid Tie Solar Calculator.

What does a solar inverter do?

A solar inverter converts DC electricity from your solar panels into AC electricity for your household appliances, enabling you to use solar power. We have a complete range of Solar Inverters for your every need. Our portfolio includes Off Grid Solar Inverters (PWM and MPPT based) and Grid Tie Solar Inverters with the best performance and reliability in the industry.

What are the types of solar inverters?

Our range of Solar Inverters include Off Grid Solar Inverters and Grid Tie Solar Inverters, each suited for different solar power system setups. Explore our complete range of Solar Inverters now!

How to choose a solar inverter?

Choose a solar inverter based on your energy needs, system size, and compatibility with your solar panels to ensure efficient energy conversion. Use our Off Grid Solar Calculator or Grid Tie Solar Calculator for our recommendations as per your requirement.

How to calculate solar inverter size?

To calculate your solar inverter size, match it to the total wattage of your solar panels, ensuring the inverter capacity meets or exceeds this value. Use our Off Grid Solar Calculator or Grid Tie Solar Calculator for our recommendations as per your requirement.

What is PV in a solar inverter?

PV stands for photovoltaic, referring to the technology that converts sunlight into electricity through solar panels in your solar power system.

Interested in buying our products?

Fill the enquiry form or call us on:

78728 78728

Enquiry Form

ES8KWT-GT

Power Rating: 8 KW

Warranty: 120 Months

Charger: MPPT

Consumer Benefits

Constant Power Supply
Use Of Renewable Resource
Power Monitoring
Power Maximization

Features

  • Max Efficiency98.5%

  • Low Startup Dc Voltage

  • Max DcOverloading 30%

  • Wide AcVoltage Range

  • Type-2 Spd EnabledAc and Dc Side

  • Eastman Solar App For Remote Monitoring 24*7

  • Built In ZeroExport Function

  • IP 65Enclosure

Technical Specification

S.No.ParametersES8KWT-GT
1Warranty10 years
2Max. DC Input Power (kW)12KW
3Max. DC Input Voltage (V)1100V
4Start-up DC Input Voltage (V)150V
5MPPT Operating Range (V)150V-1000V
6Max. DC Input Current (A)15X2
7Max. Short Circuit Current (A)25X2
8No. of MPP Trackers2
9Rated Output Power (kW)8KW
10Rated Output Power (VA)NA
11Nominal Output Voltage / Range (V)3P+N+PE/+PE 230/400V
12Rated Grid Frequency (Hz)50/60Hz
13Operating PhaseThree Phase
14Max. AC Output Current (A)13.5/PH
15Surge protectionINTEGRATED (TYPE III)
16AC ConnectionThree Phase
17InterfaceRS485/wifi /wire Ethernet/GPRS (Optional)
18Dimension (L*W*H)370x510x165

Applications

  • Home

  • Office

  • Industrial Units

  • Hospitals

  • Schools

  • Petrol Pump

Blogs

Solar Inverters
Harnessing Solar Power - A Sustainable Energy Solution for Your Home

Solar power has changed the game in a society battling with the pressing need for sustainable energy options. Solar energy harnesses the sun's abundant energy.

Solar Inverters
What Is A Solar Power Conditioning Unit? How Does It Work?

A power conditioning unit is a device used to improve and maintain the quality of power delivered to any device or electrical load equipment.

Solar Inverters
All You Need to Know About Grid Tie Inverter

Grid Tie Inverter is the vital link between your solar panels and the electrical grid.Its primary role is to transform your solar panels' direct current (DC) into alternating current (AC), making i

FAQs

What is a Solar Inverter?

A solar inverter converts the DC electricity generated by your solar panels into AC electricity, making it usable for your home or business. We have a complete range of Solar Inverters for your every need. Our portfolio includes Off Grid Solar Inverters (PWM and MPPT based) and Grid Tie Solar Inverters with the best performance and reliability in the industry.

How many solar panels should I connect with my solar inverter?

Connect enough solar panels to match the capacity of your inverter, ensuring optimal performance and efficient energy production for your needs. Use our Off Grid Solar Calculator or Grid Tie Solar Calculator for our recommendations as per your requirement.

How much electricity bill will I save when I use an Eastman solar inverter?

Using our Eastman solar inverter can save you up to 70% on your electricity bills by significantly reducing your reliance on grid electricity. Know your exact savings by using our Grid Tie Solar Calculator.

What does a solar inverter do?

A solar inverter converts DC electricity from your solar panels into AC electricity for your household appliances, enabling you to use solar power. We have a complete range of Solar Inverters for your every need. Our portfolio includes Off Grid Solar Inverters (PWM and MPPT based) and Grid Tie Solar Inverters with the best performance and reliability in the industry.

What are the types of solar inverters?

Our range of Solar Inverters include Off Grid Solar Inverters and Grid Tie Solar Inverters, each suited for different solar power system setups. Explore our complete range of Solar Inverters now!

How to choose a solar inverter?

Choose a solar inverter based on your energy needs, system size, and compatibility with your solar panels to ensure efficient energy conversion. Use our Off Grid Solar Calculator or Grid Tie Solar Calculator for our recommendations as per your requirement.

How to calculate solar inverter size?

To calculate your solar inverter size, match it to the total wattage of your solar panels, ensuring the inverter capacity meets or exceeds this value. Use our Off Grid Solar Calculator or Grid Tie Solar Calculator for our recommendations as per your requirement.

What is PV in a solar inverter?

PV stands for photovoltaic, referring to the technology that converts sunlight into electricity through solar panels in your solar power system.

Interested in buying our products?

Fill the enquiry form or call us on:

78728 78728

Enquiry Form

ES5KWS-GT-3

Power Rating: 5 KW

Warranty: 120 Months

Charger: MPPT

Consumer Benefits

Constant Power Supply
Use Of Renewable Resource
Power Monitoring
Power Maximization

Features

  • Max Efficiency98.5%

  • Low Startup Dc Voltage

  • Max DcOverloading 30%

  • Wide AcVoltage Range

  • Type-2 Spd EnabledAc and Dc Side

  • Eastman Solar App For Remote Monitoring 24*7

  • Built In ZeroExport Function

  • IP 65Enclosure

Technical Specification

S.No.ParametersES5KWT-GT
1Warranty10 years
2Max. DC Input Power (kW)7.5KW
3Max. DC Input Voltage (V)1100V
4Start-up DC Input Voltage (V)150V
5MPPT Operating Range (V)150-1000
6Max. DC Input Current (A)15X2
7Max. Short Circuit Current (A)25X2
8No. of MPP Trackers2
9Rated Output Power (kW)5KW
10Rated Output Power (VA)NA
11Nominal Output Voltage / Range (V)3P+N+PE/+PE 230/400V
12Rated Grid Frequency (Hz)50/60Hz ±5Hz
13Operating PhaseThree Phase
14Max. AC Output Current (A)8.3/8A
15Surge protectionINTEGRATED (TYPE III)
16AC ConnectionThree Phase
17InterfaceRS485/wifi /wire Ethernet/GPRS (Optional)
18Dimension (L*W*H)370x510x167

Applications

  • Home

  • Office

  • Industrial Units

  • Hospitals

  • Schools

  • Petrol Pump

Blogs

Solar Inverters
Harnessing Solar Power - A Sustainable Energy Solution for Your Home

Solar power has changed the game in a society battling with the pressing need for sustainable energy options. Solar energy harnesses the sun's abundant energy.

Solar Inverters
What Is A Solar Power Conditioning Unit? How Does It Work?

A power conditioning unit is a device used to improve and maintain the quality of power delivered to any device or electrical load equipment.

Solar Inverters
All You Need to Know About Grid Tie Inverter

Grid Tie Inverter is the vital link between your solar panels and the electrical grid.Its primary role is to transform your solar panels' direct current (DC) into alternating current (AC), making i

FAQs

What is a Solar Inverter?

A solar inverter converts the DC electricity generated by your solar panels into AC electricity, making it usable for your home or business. We have a complete range of Solar Inverters for your every need. Our portfolio includes Off Grid Solar Inverters (PWM and MPPT based) and Grid Tie Solar Inverters with the best performance and reliability in the industry.

How many solar panels should I connect with my solar inverter?

Connect enough solar panels to match the capacity of your inverter, ensuring optimal performance and efficient energy production for your needs. Use our Off Grid Solar Calculator or Grid Tie Solar Calculator for our recommendations as per your requirement.

How much electricity bill will I save when I use an Eastman solar inverter?

Using our Eastman solar inverter can save you up to 70% on your electricity bills by significantly reducing your reliance on grid electricity. Know your exact savings by using our Grid Tie Solar Calculator.

What does a solar inverter do?

A solar inverter converts DC electricity from your solar panels into AC electricity for your household appliances, enabling you to use solar power. We have a complete range of Solar Inverters for your every need. Our portfolio includes Off Grid Solar Inverters (PWM and MPPT based) and Grid Tie Solar Inverters with the best performance and reliability in the industry.

What are the types of solar inverters?

Our range of Solar Inverters include Off Grid Solar Inverters and Grid Tie Solar Inverters, each suited for different solar power system setups. Explore our complete range of Solar Inverters now!

How to choose a solar inverter?

Choose a solar inverter based on your energy needs, system size, and compatibility with your solar panels to ensure efficient energy conversion. Use our Off Grid Solar Calculator or Grid Tie Solar Calculator for our recommendations as per your requirement.

How to calculate solar inverter size?

To calculate your solar inverter size, match it to the total wattage of your solar panels, ensuring the inverter capacity meets or exceeds this value. Use our Off Grid Solar Calculator or Grid Tie Solar Calculator for our recommendations as per your requirement.

What is PV in a solar inverter?

PV stands for photovoltaic, referring to the technology that converts sunlight into electricity through solar panels in your solar power system.

Interested in buying our products?

Fill the enquiry form or call us on:

78728 78728

Enquiry Form

Subscribe to Solar Inverters
