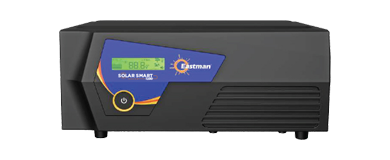

Solar Smart 1250 850VA 12V
Power Rating: 850 W
Warranty: 36 Months
Technology: PWM
Consumer Benefits
Constant Power Supply
Use Of Renewable Resource
Power Monitoring
Power Maximization
Features
Low Loss Mppt
Charger Topology
Working Mode
(Intelligent, Hybrid, Solar)
PV Reverse
Protection
Auto Selection Of Grid
Reconnect Battery Voltage
Isolated Communication
And Monitoring
Static Change
Over
Technical Specification
| S.No. | Parameters | 850VA 12V |
|---|---|---|
| 1 | Battery Voltage | 12V |
| 2 | Voc Range | 17V - 27V |
| 3 | Input Voltage (Wide Mode) | 90V - 290V ± 10% |
| 4 | Input Voltage (Narrow Mode) | 170V - 270V ± 10% |
| 5 | Output Voltage on Mains Mode | Same as input |
| 6 | Output Voltage on Backup Mode | 210V ± 10%, -15% |
| 7 | Output Frequency on Backup Mode | 50Hz ± 0.1Hz |
| 8 | Switching from Mains to Backup and from Backup to Mains | Automatic |
| 9 | Output Waveform on Mains Mode | Same as input |
| 10 | Output Waveform on Backup Mode | Sine Wave |
| 11 | Battery Charging Current | Constant charging approx 10% of the rated battery current in AH |
| 12 | Charger | CCCV |
| 13 | PCU Overload/PCU Short Circuit | 110%/300% |
| 14 | PCU Transfer Time | <= 15ms |
| 15 | Technology | DSPIC Based Design |
| 16 | Auto Reset Feature | Yes |
| 17 | Operating Temperature | 0°C - 45°C |
| 18 | MAX PV Power | 900W (150*6) 825W (165*5) |
| 19 | Solar Current MAX. | 55A |
| 20 | Type of Charge | PWM with Isolated Gate Drive |
Applications
Home
Office
Industrial Units
Hospitals
Schools
Petrol Pump
Blogs
Solar Inverters
Harnessing Solar Power - A Sustainable Energy Solution for Your Home
Solar power has changed the game in a society battling with the pressing need for sustainable energy options. Solar energy harnesses the sun's abundant energy.
Solar Inverters
What Is A Solar Power Conditioning Unit? How Does It Work?
A power conditioning unit is a device used to improve and maintain the quality of power delivered to any device or electrical load equipment.
Solar Inverters
All You Need to Know About Grid Tie Inverter
Grid Tie Inverter is the vital link between your solar panels and the electrical grid.Its primary role is to transform your solar panels' direct current (DC) into alternating current (AC), making i
FAQs
What is a Solar Inverter?
A solar inverter converts the DC electricity generated by your solar panels into AC electricity, making it usable for your home or business. We have a complete range of Solar Inverters for your every need. Our portfolio includes Off Grid Solar Inverters (PWM and MPPT based) and Grid Tie Solar Inverters with the best performance and reliability in the industry.
How many solar panels should I connect with my solar inverter?
Connect enough solar panels to match the capacity of your inverter, ensuring optimal performance and efficient energy production for your needs. Use our Off Grid Solar Calculator or Grid Tie Solar Calculator for our recommendations as per your requirement.
How much electricity bill will I save when I use an Eastman solar inverter?
Using our Eastman solar inverter can save you up to 70% on your electricity bills by significantly reducing your reliance on grid electricity. Know your exact savings by using our Grid Tie Solar Calculator.
What does a solar inverter do?
A solar inverter converts DC electricity from your solar panels into AC electricity for your household appliances, enabling you to use solar power. We have a complete range of Solar Inverters for your every need. Our portfolio includes Off Grid Solar Inverters (PWM and MPPT based) and Grid Tie Solar Inverters with the best performance and reliability in the industry.
What are the types of solar inverters?
Our range of Solar Inverters include Off Grid Solar Inverters and Grid Tie Solar Inverters, each suited for different solar power system setups. Explore our complete range of Solar Inverters now!
How to choose a solar inverter?
Choose a solar inverter based on your energy needs, system size, and compatibility with your solar panels to ensure efficient energy conversion. Use our Off Grid Solar Calculator or Grid Tie Solar Calculator for our recommendations as per your requirement.
How to calculate solar inverter size?
To calculate your solar inverter size, match it to the total wattage of your solar panels, ensuring the inverter capacity meets or exceeds this value. Use our Off Grid Solar Calculator or Grid Tie Solar Calculator for our recommendations as per your requirement.
What is PV in a solar inverter?
PV stands for photovoltaic, referring to the technology that converts sunlight into electricity through solar panels in your solar power system.
